The Task

SINDy (Sparse Identification of Nonlinear Dynamics) discovers the ODE governing a time series by picking a sparse combination from a hand-crafted library of basis functions:

\dot{X}\;=\;\Theta(X)\cdot\xi,\qquad\Theta(X)=[1,\;x,\;x^{2},\;\sin x,\;\cos x% ,\;\ldots]

Standard SINDy needs a human to curate $\Theta$ . Neural SINDy replaces each basis function with a small MLP that has grokked one operation — identity, sin, cos, add, mul — so the library becomes a learned component. The sparse regression then selects which learned operations best explain the observed dynamics.

The target is a damped harmonic oscillator with $k=1.0$ , $c=0.1$ :

\ddot{x}\;=\;-k\,x-c\,\dot{x}\qquad\Longleftrightarrow\qquad\dot{x}=v,\;\;\dot% {v}=-k\,x-c\,v

600 time points, small Gaussian noise. Success means recovering those two equations with clean, interpretable coefficients.

Pipeline (Phases 1–3)

Phase 1.

Train 5 MLPs past overfitting on basic operations — AdamW with heavy weight decay for 10k–20k epochs each. Training loss drops fast; validation loss drops much later (grokking). Each MLP ends as a clean algorithmic circuit for its target function.

Phase 2.

Simulate the oscillator; collect $[t,x,v,\dot{x},\dot{v}]$ .

Phase 3.

Build $\Theta(X)$ by passing the state data through each grokked MLP (8 terms total: identity, sin, cos on $x$ and $v$ , plus add(x,v) and mul(x,v)), then solve for a sparse $\xi$ .

Run 1: STLSQ Baseline — Correct Answer, Ugly Presentation

Sequential Thresholded Least Squares fits exactly — MSE $10^{-6}$ — but the coefficients are distributed across redundant terms:

\dot{x}\;\approx\;-0.333\cdot\mathrm{id}(x)+0.667\cdot\mathrm{id}(v)+0.332% \cdot\mathrm{add}(x,v)

\dot{v}\;\approx\;-0.632\cdot\mathrm{id}(x)+0.268\cdot\mathrm{id}(v)-0.368% \cdot\mathrm{add}(x,v)

Summing simplifies cleanly to the truth ( $\dot{x}=v$ , $\dot{v}=-x-0.1v$ ), but the individual coefficients are uninterpretable. The reason is an exact collinearity in the library: $\mathrm{add}(x,v)=\mathrm{id}(x)+\mathrm{id}(v)$ , so $\Theta$ is rank-deficient. STLSQ — even with ridge regularization — cannot distinguish the redundant directions and splits coefficients arbitrarily. Dropping add from the library is the one-line fix; a more principled fix would move to a method that doesn’t invert $\Theta$ at all.

Hypothesis. A differentiable Gumbel-Softmax router over the library would pick terms categorically rather than solving a linear system, sidestepping rank deficiency.

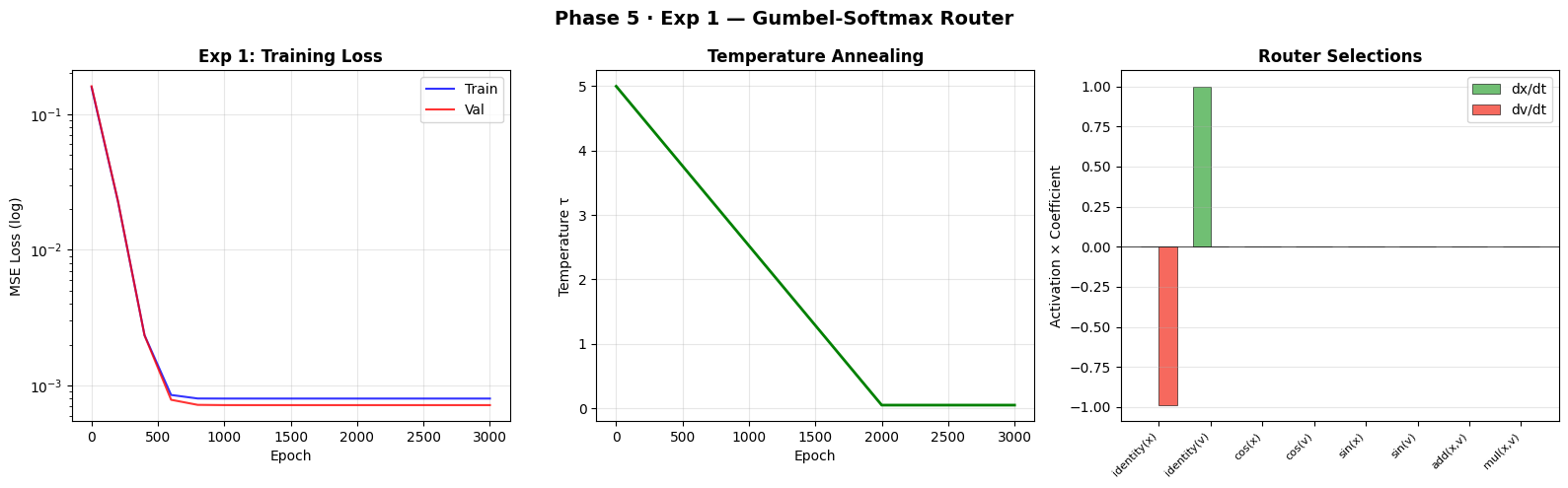

Run 2 (Exp 1): Gumbel-Softmax, Softmax Soup

A state-dependent router (Linear $\to$ ReLU $\to$ Linear $\to$ ReLU $\to$ Linear) with Gumbel-Softmax sampling and temperature annealing $\tau:5.0\to 0.05$ . Expected near-one-hot activations; got a “softmax soup” instead.

	max activation	final MSE
$\dot{x}$	$43.8\%$ (identity(v))	$\sim 5\cdot 10^{-3}$
$\dot{v}$	$19.2\%$ (identity(x))	$\sim 5\cdot 10^{-3}$

The router found the right dominant term ( $\mathrm{id}(v)$ with coefficient $+1.0000$ ) but never committed. Three failures stacked:

No sparsity pressure.

Nothing in the loss pushes the logits apart. With high $\tau$ the router computes a weighted average across all MLPs and tunes per-MLP coefficients to fit the data. When $\tau$ drops at epoch 2000, the underlying distribution never concentrated, and the soft-vs-hard mismatch shows as a loss discontinuity.

Damping lost.

$\dot{v}$ ’s damping term $-0.1\,v$ is $10\times$ smaller than the restoring force. Without sparsity, that signal is drowned across 7 other terms.

Collinearity in disguise.

add(x,v) is still selected 10–14% of the time with meaningful coefficients. Rank deficiency didn’t disappear — it became probability-mass splitting.

Net: MSE $\sim 1000\times$ worse than STLSQ. Gumbel-Softmax without entropy regularization is just a fancy softmax.

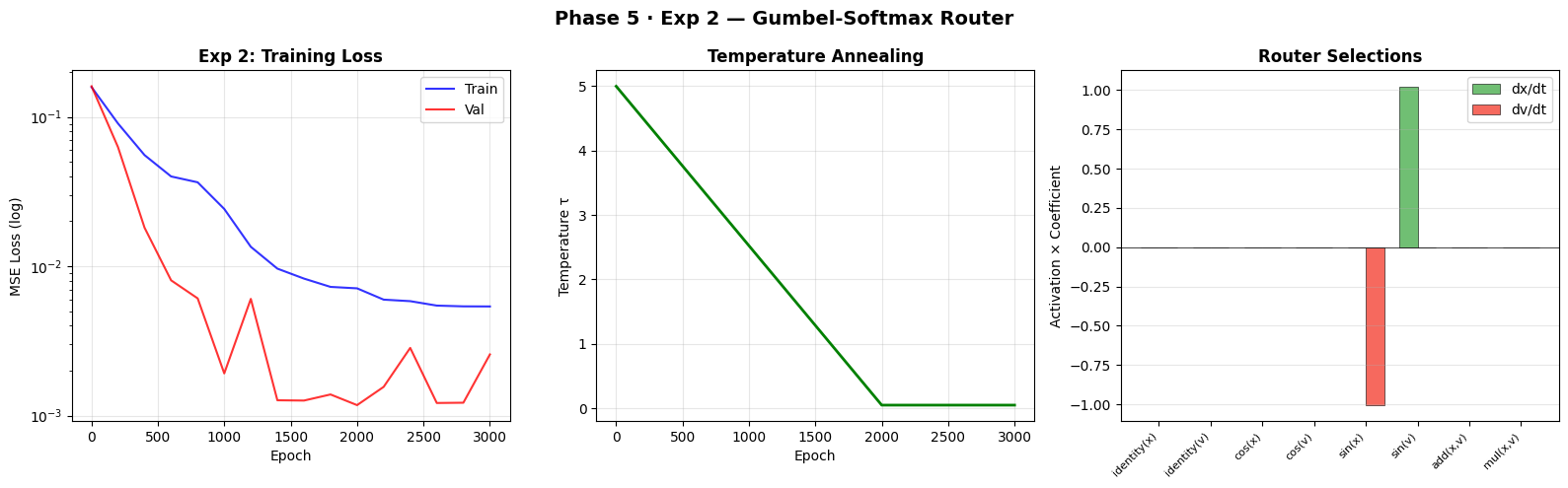

Run 3 (Exp 2): Scalar Router + Entropy — Wrong Basis

Three changes from Exp 1:

1.

State-independent router. A single learnable logit vector per derivative, broadcast across the batch. Matches the SINDy assumption that one term governs the dynamics everywhere in state space. Param count drops from $9{,}760\to 32$ .
2.

Entropy penalty with correct sign, scheduled weight: $w=0.05\cdot\max(0,1-\tau/\tau_{\text{start}})$ . Zero at the start (pure exploration); $\sim 0.05$ at the end (strong pressure toward one-hot).
3.

Same Gumbel-Softmax + anneal schedule.

Result: clean one-hot commitment.

	selected term	activation
$\dot{x}$	$+1.0265\cdot\sin(v)$	$99.7\%$
$\dot{v}$	$-1.0138\cdot\sin(x)$	$99.2\%$

Wrong basis. The true equations are linear in $x,v$ , so $\mathrm{id}(x)$ and $\mathrm{id}(v)$ should have won. The router picked sin instead because $\sin(z)\approx z$ within $\sim 15\%$ for $|z|\lesssim 1$ (the amplitudes the oscillator visits). The inflated coefficient ( $1.0265$ vs. true $1.0$ ) absorbs the Taylor-series shortfall. The entropy penalty broke the near-tie arbitrarily.

Damping is still gone: one-hot structurally cannot represent a two-term equation like $\dot{v}=-1\cdot x-0.1\cdot v$ .

Two collinearities, not one.

Exp 1 hit the exact collinearity $\mathrm{add}(x,v)=\mathrm{id}(x)+\mathrm{id}(v)$ . Exp 2 sidesteps that but hits an approximate collinearity $\sin(z)\approx z$ . The library design is the real bottleneck; both optimizers are doing their jobs.

Run 4 (Exp 3): Top- $k$ + Complexity Prior — Dominant Term Recovered

Two changes:

Top- $k$ routing ( $k{=}2$ ).

Each derivative selects two basis functions instead of one. Implemented as $k$ independent Gumbel-Softmax draws with prior selections masked out (sampling- without-replacement via iterative masked argmax with STE gradients). Each slot has its own learnable coefficient. Now $\dot{v}=-1\cdot x-0.1\cdot v$ is representable.

Complexity prior ( $\alpha{=}1.0$ ).

Occam’s razor baked into the logits: $\mathrm{identity}\prec\sin/\cos\prec$ binary MLPs. Added directly to the logits so it biases selection without distorting learned coefficients.

Result:

\dot{x}\;=\;+1.0000\cdot\mathrm{id}(v)

\dot{v}\;=\;-0.9853\cdot\mathrm{id}(x)-0.0267\cdot\mathrm{id}(v)-0.0151\cdot% \sin(v)

term	discovered	true	error
$\mathrm{id}(v)$ in $\dot{x}$	$+1.0000$	$+1.0$	$0.00\%$
$\mathrm{id}(x)$ in $\dot{v}$	$-0.9853$	$-1.0$	$1.5\%$
$\mathrm{id}(v)$ in $\dot{v}$	$-0.0267$	$-0.1$	$73\%$

Slot 1 locks cleanly on the correct basis in both derivatives. Slot 2 identifies $\mathrm{id}(v)$ as the right damping term but fails to commit — selected only 27% of the time, with a coefficient $\sim 1/4$ the true magnitude.

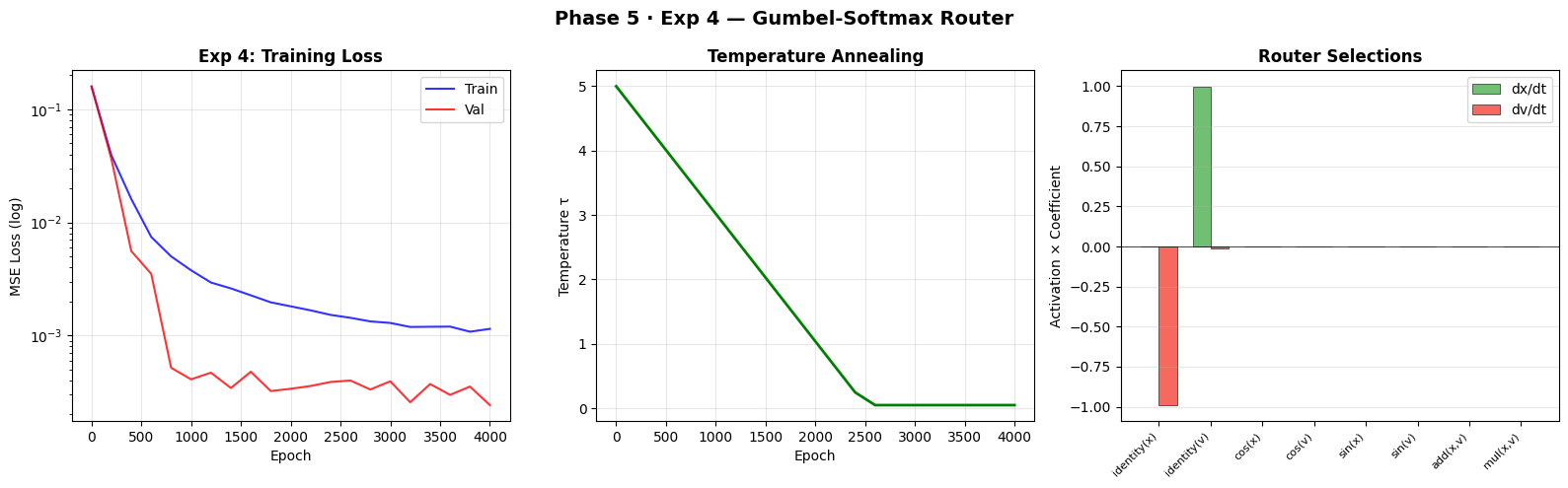

Run 5 (Exp 4): Conditional Slot Entropy — Diagnosis

Root cause found.

Exp 3’s entropy penalty operated on the base distribution $\mathrm{softmax}(\mathrm{logits}+\mathrm{prior})$ — before any masking. Minimizing that drove the base distribution one-hot on the dominant term. Once slot 1 committed and masked its winner to $-\infty$ , slot 2 faced a near-flat conditional distribution with no gradient pointing it anywhere useful.

Fix.

Iterate slot-by-slot, mirroring the forward pass:

H_{j}=-\!\!\sum\mathrm{softmax}(\mathrm{logits}+\mathrm{mask}_{j})\cdot\log% \mathrm{softmax}(\mathrm{logits}+\mathrm{mask}_{j}),\quad\mathrm{mask}_{j+1}% \mathrel{+}=-\infty\;\text{at}\;\arg\max_{j}

Each slot’s conditional distribution is penalized independently. Slot 2 now receives a direct gradient to concentrate on whatever term best explains the residual.

Result: slot 1 unchanged (100% commitment, coefficients unchanged). Slot 2’s $\mathrm{id}(v)$ activation improves from 27% $\to$ 34%; damping coefficient from $-0.027\to-0.034$ . Val MSE $2.42\cdot 10^{-4}$ , still $\sim 24\times$ above the $10^{-5}$ target.

Why slot 2 still won’t commit.

Three compounding factors:

1.

Weak residual signal. After slot 1 absorbs $\sim 99\%$ of $\dot{v}$ variance, the residual slot 2 must explain is $\sim 10\times$ smaller than the primary signal. Reconstruction-loss gradient to slot 2 is proportionally weak.
2.

STE gradient starvation at low $\tau$ . At $\tau=0.05$ , the Straight-Through Estimator back-propagates through soft weights that are essentially zero for non-winners. Slot 2’s losing logits barely move.
3.

Entropy budget split equally. The entropy weight applies to both slots, but slot 1 is already committed and doesn’t need pressure. Budget wasted.

Summary of Runs

Run	Method	Val MSE	Max act.	Correct?
1	STLSQ	$10^{-6}$	—	structure: yes; coeffs: spread
2	Gumbel, MLP router	$\sim 5\cdot 10^{-3}$	$44\%$	soft mixture, damping gone
3	Gumbel, scalar + entropy	$\sim 1\cdot 10^{-3}$	$99.7\%$	wrong basis (sin vs id)
4	+ top- $k$ + complexity prior	$\sim 3\cdot 10^{-4}$	$100\%$	right basis; damping at $27\%$
5	+ conditional slot entropy	$2.4\cdot 10^{-4}$	$100\%$	damping at $34\%$

What I Learned

Each failure revealed something different about the library-vs-optimizer interplay:

1.

STLSQ fails on exact collinearity because it inverts a rank-deficient $\Theta$ ; it distributes coefficients rather than picking.
2.

Gumbel-Softmax without an entropy penalty stays soft. Categorical sampling doesn’t imply categorical commitment; the loss has to ask for it.
3.

One-hot with entropy cannot represent multi-term equations and picks arbitrarily among approximately collinear terms ( $\sin\approx\mathrm{id}$ for small amplitudes).
4.

Top- $k$ + complexity prior fixes both, but the joint loss starves slot 2’s gradient when the residual signal is $10\times$ smaller than the primary term.

The library has two collinearities — one exact, one approximate — and every method “failed” by exposing one of them. The real fix lives upstream of the router: drop add from the library, train slot 2 on an explicit residual $\dot{v}-\xi_{1}\cdot\mathrm{basis}_{1}(X)$ , or freeze slot 1 after commitment and fine-tune slot 2 alone. All three give the weak damping term a full-strength gradient instead of a fraction of the joint loss.

The template, again: when a method fails, the failure mode is usually more informative than the failure magnitude. STLSQ’s MSE of $10^{-6}$ looked like success and was hiding a rank-deficient library; the router’s MSE of $5\cdot 10^{-3}$ looked like failure and pointed directly at the missing sparsity objective. Reading the residuals — per term, not in aggregate — is where the signal lives.
